商品規格 |
|
| 出線孔/螺紋單位 | NPT |
| 產品來源 | 台灣製造 |
敘述：

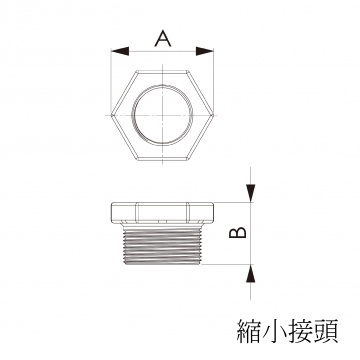

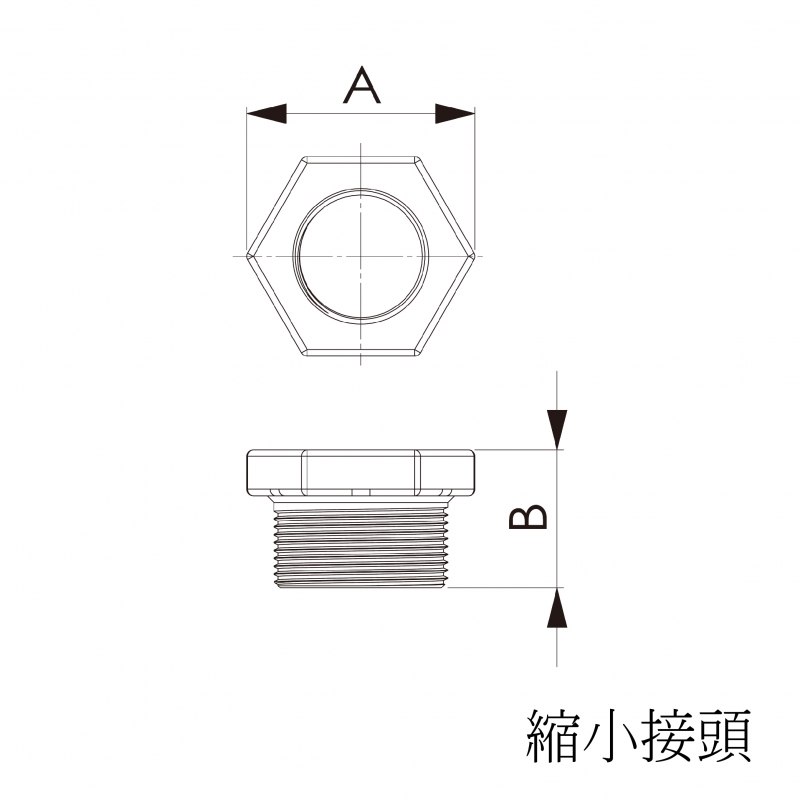

| 品項 | |||
| 大轉小 | A | B | |
| 3/4" | 1/2" | 35 | 21 |
| 1" | 1/2' | 42 | 21 |
| 1" | 3/4" | 42 | 21 |
| 1-1/4" | 1/2" | 53 | 28 |
| 1-1/4" | 3/4" | 53 | 28 |
| 1-1/4" | 1" | 53 | 28 |
| 1-1/2" | 1/2" | 63 | 30 |
| 1-1/2" | 3/4" | 63 | 30 |
| 1-1/2" | 1" | 63 | 30 |
| 1-1/2" | 1-1/4" | 63 | 30 |
| 2" | 1/2" | 67 | 35 |
| 2" | 3/4" | 67 | 35 |
| 2" | 1" | 67 | 35 |
| 2" | 1-1/4" | 67 | 35 |
| 2" | 1-1/2" | 67 | 35 |
| 2-1/2" | 1/2" | 85 | 36 |
| 2-1/2" | 3/4" | 85 | 36 |
| 2-1/2" | 1" | 85 | 36 |
| 2-1/2" | 1-1/4" | 85 | 36 |
| 2-1/2" | 1-1/2" | 85 | 36 |
| 2-1/2" | 2" | 85 | 36 |
| 3" | 1/2" | 101 | 45 |
| 3" | 3/4" | 101 | 45 |
| 3" | 1" | 101 | 45 |
| 3" | 1-1/4" | 101 | 45 |
| 3" | 1-1/2" | 101 | 45 |
| 3" | 2" | 101 | 45 |
| 3" | 2-1/2" | 101 | 45 |
| 4" | 1/2" | 128 | 48 |
| 4" | 3/4" | 128 | 48 |
| 4" | 1" | 128 | 48 |
| 4" | 1-1/4" | 128 | 48 |
| 4" | 1-1/2" | 128 | 48 |
| 4" | 2" | 128 | 48 |
| 4" | 2-1/2" | 128 | 48 |
| 4" | 3" | 128 | 48 |
-
品名：內外牙縮小接頭
類型：None或其他
料號：
標記：
本體材質：
鑄鐵
燈管護罩：
燈頭尺寸：
認證單位： -
品名：內外牙放大接頭
類型：None或其他
料號：
標記：
本體材質：
鑄鐵
燈管護罩：
燈頭尺寸：
認證單位：
